70-260mm Paper Handle Making Machine 20-80 Pcs/Min

Brand Name : haijing

Model Number : LRP-W

Certification : CE

Place of Origin : RUIAN

MOQ : 1 set

Price : 5

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 9999 PCS per minute

Delivery Time : 15

Packaging Details : wooden case

After-sales service provided : Engineers available to service machinery overseas

Power(w) : 16kw

Speed : 20-80pcs/min

Name : Kraft paper bag making machine

Product name : STD-930 Hand-bag Pasting Machine

Type : Bag Making Machine

Color : Any color paper available

Paper weight : 60-150gsm

Machine power : 8kw

Bag width (max) : 70-260mm

Contact Now

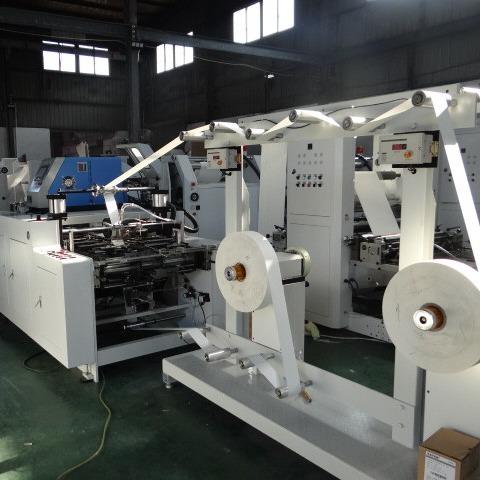

Paper Handle making Machine (Water-based glue type)
Introduction:
machine was developed specifically for the new generation of paper Handle Machine. This machine is sandwiched
between two layers of kraft paper rope middle, after gluing, lamination, and then automatically cut into a single
handle. Paper bag machine is the ideal complementary product lines.
Features:
1. Water-based adhesive has low cost and is not easy to fall off at
low temperature.
2. easy to operate, fast.
Technical Parameter:
Type
LRP-W
(W)
Handle Spacing (W)
57 mm
76 mm
95 mm
114 mm
L)
Paper Board Length(L)
114 mm
152 mm
190 mm
228 mm
(h)
Paper Board Width(h)
30-40 mm
(D)
Rope Diameter(D)
3-5 mm
(H)
Rope Height(H)
100 mm
Max.Speed
200 pcs/min
Paper Thickness
100-150 gsm
Paper Roll Width
60-80 mm
Max.Roll diameter
1000 mm
Reel inner diameter
76 mm
Total Power
4.5 Kw
Weight of Machine
1500 kg
Overall Dimension(LxWxH)
4700×1300×1500 mm
